Celestaire

Radar Plotting Sheets

Radar Plotting Sheets

Regular price $10.95 USD
Regular price Sale price $10.95 USD
Sale Sold out

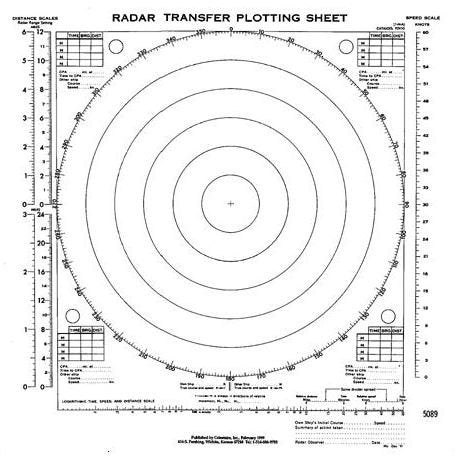

Radar Plotting Sheets, pad of 50, printed both sides, 13 x 13 inches, black ink on white paper.

Radar Plotting Sheets are used to solve the relative motion diagram and other problems in radar observing. This product is a commercial reproduction of what was once DMA pub no 5089. The active plotting circle is 12 inches in diameter, with 6 range rings. Scales for ranges 3, 6, 12, and 24 are included as well as a speed-time-distance nomogram.

The sheets are called "transfer plotting sheets" because you transfer observations of range, bearing, and time from the radar screen to these sheets and then complete the plotting on the sheet. The alternative is called "rapid radar plotting" which is done right on the radar screen. These sheets are also essentially the same as what is called a "maneuvering board," used for solving any vector problem in navigation.
